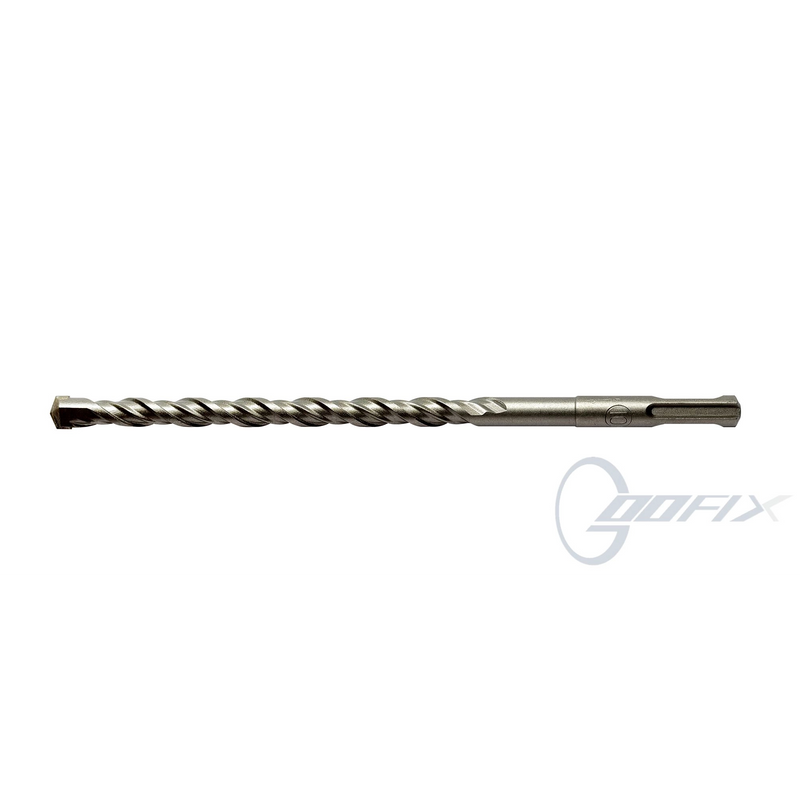

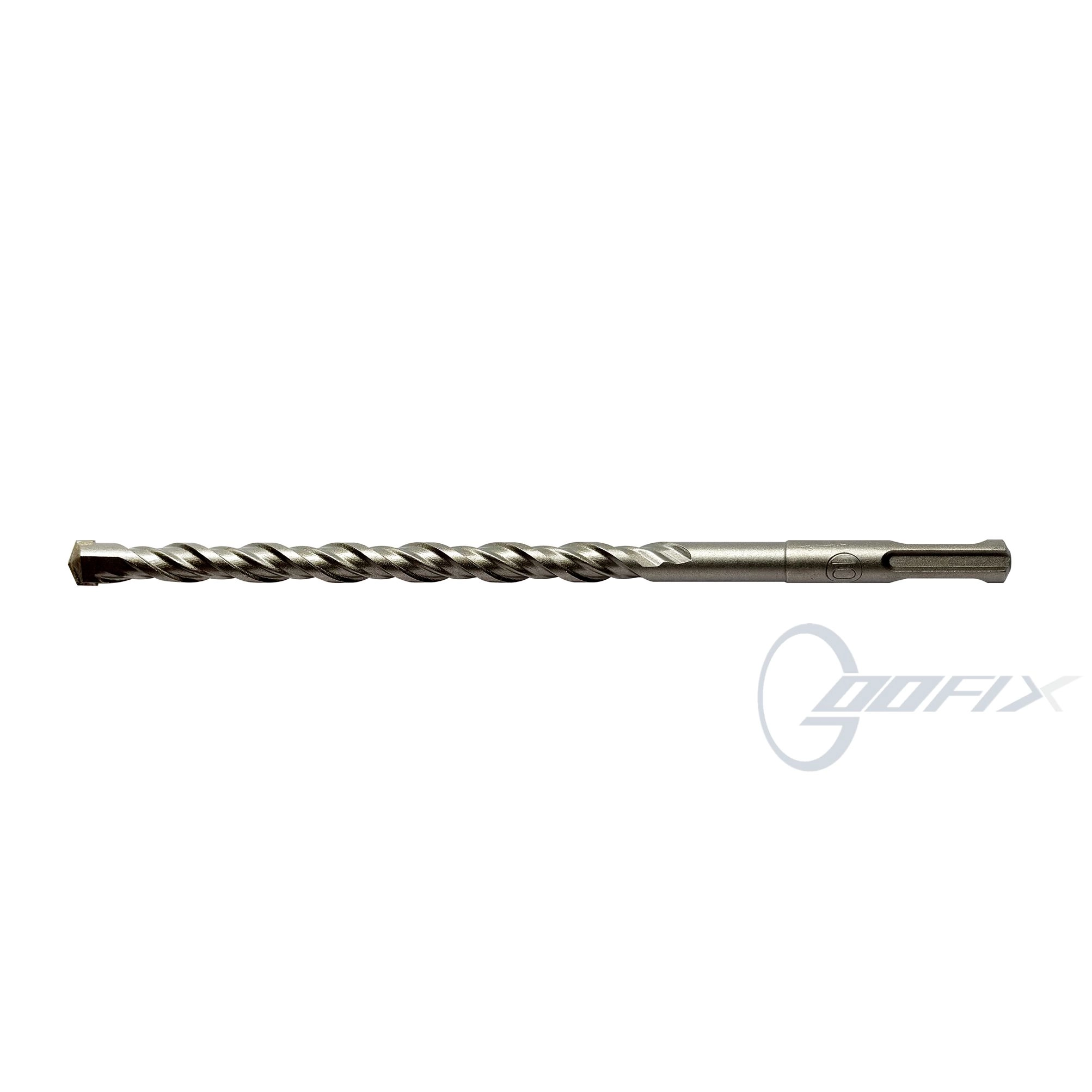

HAMMER DRILLS

You Are Here: Home » Products » DRILLS » MASONRY DRILLS » HAMMER DRILLS

HAMMER DRILLS


Availability:



Inquire Add to Basket

Product Description

d	L
mm	ToL	Stub	Jobbes	Long	Extra Long
5	+0.3	110	160	210
6	+0.12	110	160	210
7	+0.36	110	160	210
8	+0.15	110	160	210
10	+0.15	110	160	210	310
12	+0.43	160	160	210	310
14	+0.43	160	160	210	310
16	+0.18	160	210	210	310
18	+0.18	160	210	210	310
20	+0.52	160	210	360	310
22	+0.52	210	210	360	460
24	+0.21	210	310	360	460
26	+0.21	210	310	360	460
28	+0.21	210	310	460	610
32	+0.62	260	310	460	610
35	+0.62	260	310	460	610
38	+0.62	260	310	460	610
40	+0.62	260	360	460	610
42	+0.25	260	360	460	610
45	+0.25	260	360	460	610
50	+0.25	260	360	460	610

Jobbes Length					Long Length					Extra Long Length					Stub Series Length
d			L		d			L		d			L		d			L
5	+0.35	+0.50	105		5	+0.35	+0.15	135		10	+0.45	+0.20	255		5	+0.35	+0.15	90
6	+0.45	+0.50	105		6	+0.45	+0.15	155		12	+0.50	+0.20	455		7	+0.45	+0.20	105
7	+0.45	+0.20	155		7	+0.45	+0.20	205		16	+0.50	+0.20	605		8	+0.45	+0.20	105
8	+0.45	+0.20	155		8	+0.45	+0.20	205		20	+0.55	+0.21	605		10	+0.45	+0.20	135
9	+0.45	+0.20	155		9	+0.45	+0.20	205		25	+0.55	+0.21	605		12	+0.50	+0.20	135
10	+0.45	+0.20	155		10	+0.45	+0.20	205		28	+0.55	+0.21	605		14	+0.50	+0.20	155
11	+0.50	+0.20	155		11	+0.70	+0.20	205		35	+0.70	+0.25	605		15	+0.50	+0.20	155
12	+0.50	+0.20	205		12	+0.50	+0.20	255		44	+0.80	+0.25	605		16	+0.50	+0.20	205
13	+0.50	+0.20	205		13	+0.50	+0.20	255		52	+0.95	+0.30	605		17	+0.50	+0.20	205
14	+0.50	+0.20	205		14	+0.50	+0.20	255							18	+0.50	+0.20	205
15	+0.50	+0.20	205		15	+0.50	+0.20	255							19	+0.55	+0.21	205
16	+0.50	+0.20	255		16	+0.50	+0.20	255							20	+0.55	+0.21	205
18	+0.50	+0.20	255		20	+0.55	+0.21	455
19	+0.55	+0.20	255		22	+0.55	+0.21	455
20	+0.55	+0.21	255		24	+0.55	+0.21	455
22	+0.55	+0.21	255		25	+0.55	+0.21	455
24	+0.55	+0.21	255		28	+0.55	+0.21	455
25	+0.55	+0.21	255		30	+0.55	+0.21	455
28	+0.55	+0.21	305		32	+0.7	+0.25	455
30	+0.55	+0.21	305		35	+0.7	+0.25	455
32	+0.7	+0.25	305		37	+0.7	+0.25	455
35	+0.7	+0.25	305		40	+0.8	+0.25	455
37	+0.7	+0.25	305		44	+0.8	+0.25	455
40	+0.8	+0.25	305		52	+0.95	+0.30	455
44	+0.8	+0.25	305
52	+0.95	+0.30	305
