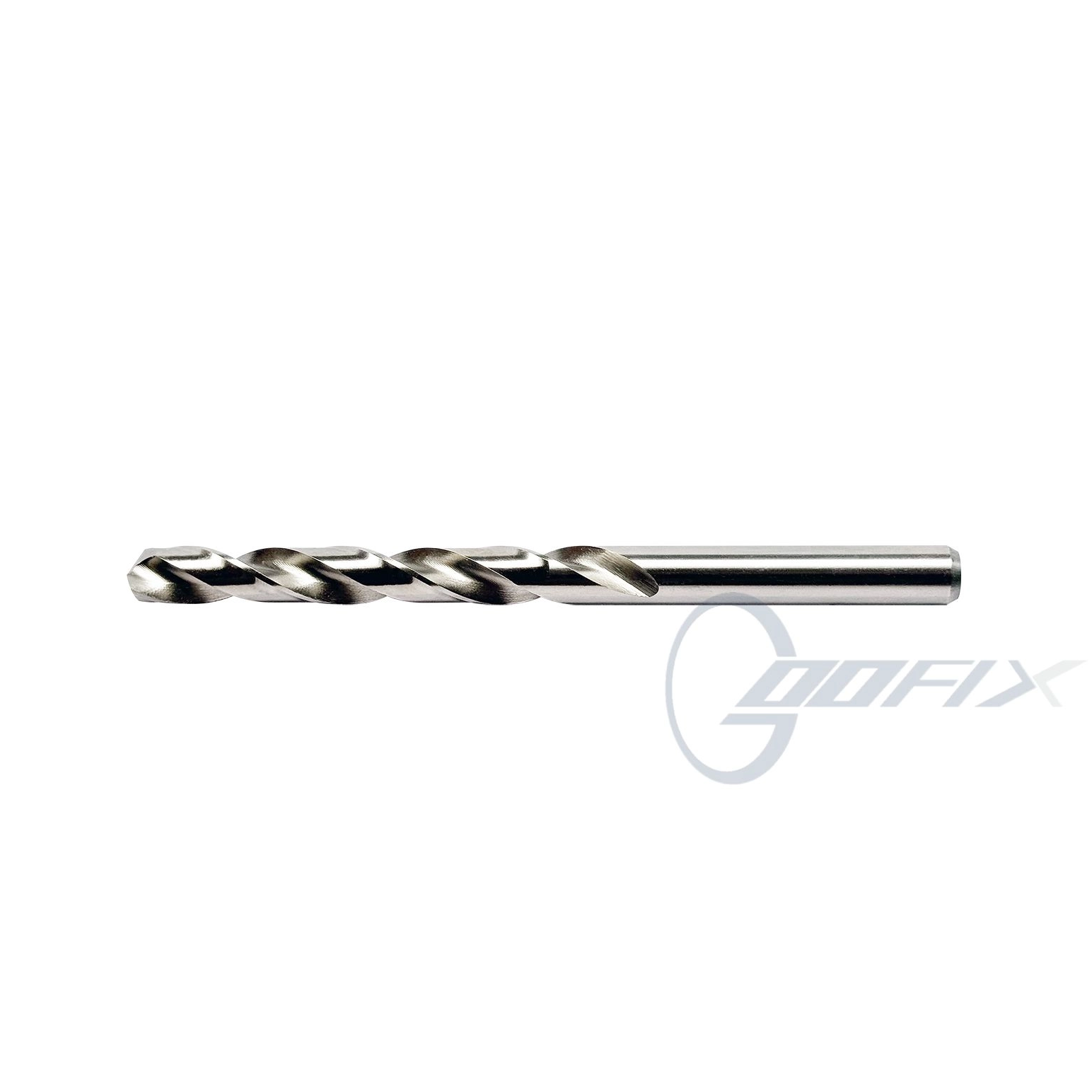

ASME B94.11M HSS JOBBER LENGTH STRAIGHT SHANK TWIST DRILLS
Diameter d		Overall Length L	Slot Length L₁	Diameter d		Overall Length L	Slot Length L₁	Diameter d		Overall Length L	Slot Length L₁
1/16	1.588	48	22	A	5.944	98	67	60	1.016	41	17
5/64	1.984	51	25	B	6.045	102	70	59	1.041	41	17
3/32	2.381	57	32	C	6.147	102	70	58	1.067	41	17
7/64	2.778	67	38	D	6.248	102	70	57	1.092	44	19
1/8	3.175	70	41	E	6.35	102	70	56	1.181	44	19
9/64	3.572	73	44	F	6.528	105	73	55	1.321	48	22
5/32	3.969	79	51	G	6.629	105	73	54	1.397	48	22
11/64	4.366	83	54	H	6.756	105	73	53	1.511	48	22
3/16	4.763	89	59	I	6.909	105	73	52	1.613	48	22
13/64	5.159	92	62	J	7.036	105	73	51	1.702	51	25
7/32	5.556	95	64	K	7.137	108	75	50	1.778	51	25
15/64	5.953	98	67	L	7.366	108	75	49	1.854	51	25
1/4	6.35	102	70	M	7.493	111	78	48	1.93	51	25
17/64	6.747	105	73	N	7.671	111	78	47	1.994	51	25
9/32	7.144	108	75	O	8.026	114	81	46	2.057	54	29
19/64	7.541	111	78	P	8.204	117	84	45	2.083	54	29
5/16	7.938	114	81	Q	8.433	121	87	44	2.184	54	29
21/64	8.334	117	84	R	8.611	121	87	43	2.261	57	32
11/32	8.731	121	87	S	8.839	124	89	42	2.375	57	32
23/64	9.128	124	89	T	9.093	124	89	41	2.438	60	35
3/8	9.525	127	92	U	9.347	127	92	40	2.489	60	35
25/64	9.922	130	95	V	9.576	127	92	39	2.527	60	35
13/32	10.319	133	98	W	9.804	130	95	38	2.578	64	37
27/64	10.716	137	100	X	10.084	130	95	37	2.642	64	37
7/16	11.113	140	103	Y	10.262	133	98	36	2.705	64	37
29/64	11.509	143	106	Z	10.49	133	98	35	2.794	67	38
15/32	11.906	146	110					34	2.819	67	38
31/64	12.303	149	111					33	2.87	70	41
1/2	12.7	152	114					32	2.946	70	41
33/64	13.097	168	122					31	3.048	70	41
	13.1	168	122					30	3.264	70	41
	13.2	168	122					29	3.454	73	44
	13.3	168	122					28	3.569	73	44
	13.4	168	122					27	3.658	76	48
17/32	13.494	168	122					26	3.734	76	48
	13.5	168	122					25	3.797	76	48
	13.6	168	122					24	3.861	79	51
	13.7	168	122					23	3.912	79	51
	13.8	168	122					22	3.988	79	51
35/64	13.891	168	122					21	4.039	83	54
	13.9	168	122					20	4.089	83	54
	14	168	122					19	4.216	83	54
	14.25	168	122					18	4.305	83	54
9/16	14.288	168	122					17	4.394	86	56
9/16	14.5	168	122					16	4.496	86	56
37/64	14.684	168	122					15	4.572	86	56
	14.75	181	132					14	4.623	86	56
	15	181	132					13	4.7	89	59
19/32	15.081	181	132					12	4.8	89	59
19/32	15.25	181	132					11	4.851	89	59
39/64	15.478	181	132					10	4.915	92	62
	15.5	181	132					9	4.978	92	62
	15.75	181	132					8	5.055	92	62
5/8	15.875	181	132					7	5.105	92	62
	16	181	132					6	5.182	95	64
	16.25	181	132					5	5.22	95	64
41/64	16.272	181	132					4	5.309	95	64
41/64	16.5	181	132					3	5.41	95	64
21/32	16.669	181	132					2	5.613	98	67
	16.75	194	143					1	5.791	98	67
	17	194	143
43/64	17.066	194	143
	17.25	194	143
	17.463	194	143
	17.5	194	143
