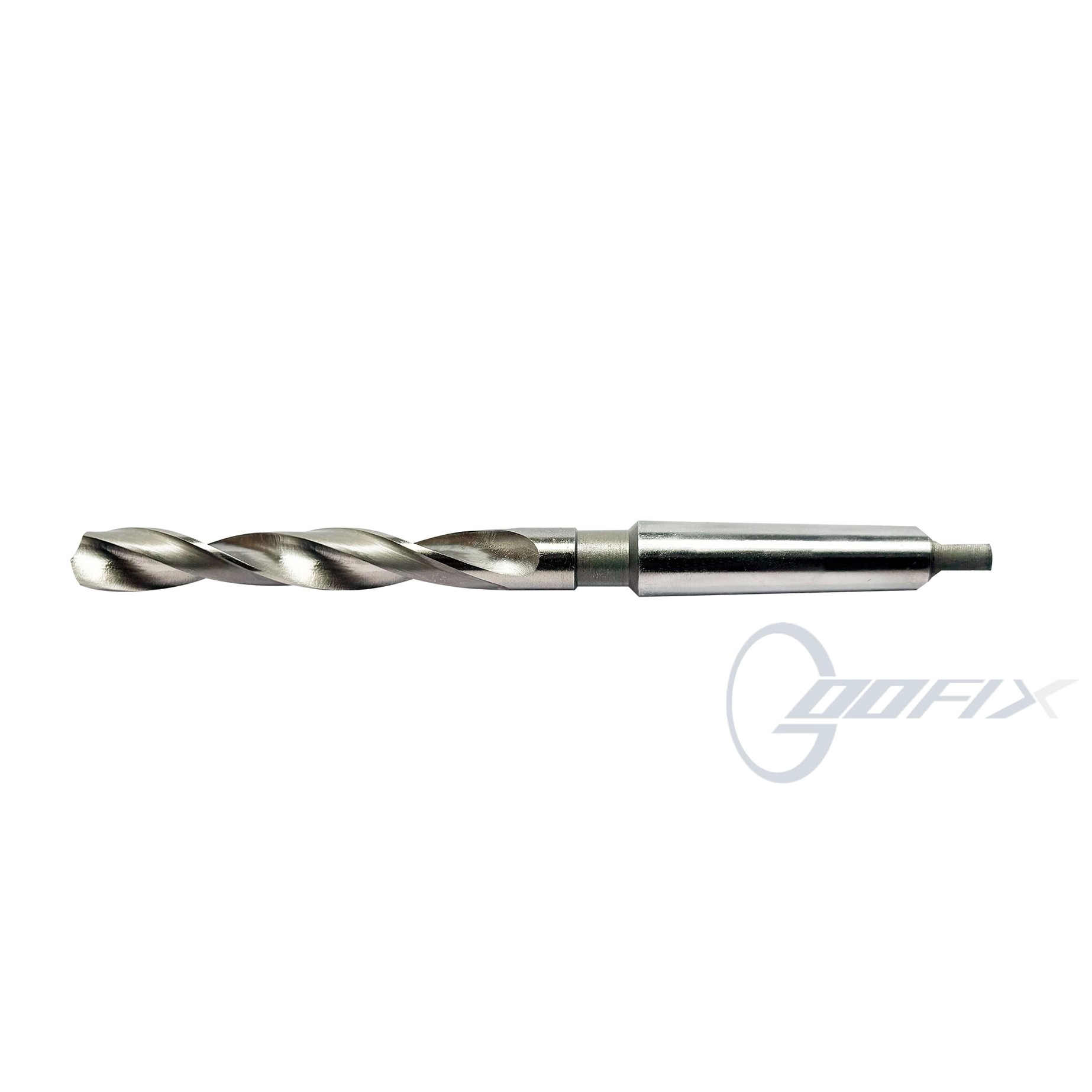

DIN345 HSS TAPER SHANK TWIST DRILLS


Availability:



Inquire Add to Basket

Product Description

Diameter d	Cutting length L	Standard Shank		Diameter d	Cutting length L	Standard Shank		Diameter d	Cutting length L	Standard Shank
Diameter d	Cutting length L	Overall lengthL₁	Morse taper shank No.	Diameter d	Cutting length L	Overall lengthL₁	Morse taper shank No.	Diameter d	Cutting length L	Overall lengthL₁	Morse taper shank No.
3	33	114	1	20.25	145	243	2	43	210	359	4
3.2	36	117	1	20.5	145	243	2	43.5	210	359	4
3.5	39	120	1	20.75	145	243	2	44	210	359	4
3.8	43	124	1	21	145	243	2	44.5	210	359	4
4	43	124	1	21.25	150	248	2	45	210	359	4
4.2	43	124	1	21.5	150	248	2	45.5	215	364	4
4.5	47	128	1	21.75	150	248	2	46	215	364	4
4.8	52	133	1	22	150	248	2	46.5	215	364	4
5	52	133	1	22.25	150	248	2	47	215	364	4
5.2	52	133	1	22.5	155	253	2	47.5	215	364	4
5.5	57	138	1	22.75	155	253	2	48	220	369	4
5.8	57	138	1	23	155	253	2	48.5	220	369	4
6	57	138	1	23.25	155	276	3	49	220	369	4
6.2	63	144	1	23.5	155	276	3	49.5	220	369	4
6.5	63	144	1	23.75	160	281	3	50	220	369	4
6.8	69	150	1	24	160	281	3	50.5	225	374	4
7	69	150	1	24.25	160	281	3	51	225	412	5
7.2	69	150	1	24.5	160	281	3	52	225	412	5
7.5	69	150	1	24.75	160	281	3	53	225	412	5
7.8	75	156	1	25	160	281	3	54	230	417	5
8	75	156	1	25.25	165	286	3	55	230	417	5
8.2	75	156	1	25.5	165	286	3	56	230	417	5
8.5	75	156	1	25.75	165	286	3	57	235	422	5
8.8	81	162	1	26	165	286	3	58	235	422	5
9	81	162	1	26.25	165	286	3	59	235	422	5
9.2	81	162	1	26.5	165	286	3	60	235	422	5
9.5	81	162	1	26.75	170	291	3	61	240	427	5
9.8	87	168	1	27	170	291	3	62	240	427	5
10	87	168	1	27.25	170	291	3	63	240	427	5
10.2	87	168	1	27.5	170	291	3	64	245	432	5
10.5	87	168	1	27.75	170	291	3	65	245	432	5
10.8	94	175	1	28	170	291	3	66	245	432	5
11	94	175	1	28.25	175	296	3	67	245	432	5
11.2	94	175	1	28.5	175	296	3	68	250	437	5
11.5	94	175	1	28.75	175	296	3	69	250	437	5
11.8	94	175	1	29	175	296	3	70	250	437	5
12	101	182	1	29.25	175	296	3	71	250	437	5
12.2	101	182	1	29.5	175	296	3	72	255	442	5
12.5	101	182	1	29.75	175	296	3	73	255	442	5
12.8	101	182	1	30	175	296	3	74	255	442	5
13	101	182	1	30.25	180	301	3	75	255	442	5
13.2	101	182	1	30.5	180	301	3	76	260	447	5
13.5	108	189	1	30.75	180	301	3	77	260	514	6
13.8	108	189	1	31	180	301	3	78	260	514	6
14	108	189	1	31.25	180	301	3	79	260	514	6
14.25	114	212	2	31.5	180	301	3	80	260	514	6
14.5	114	212	2	31.75	185	306	4	81	265	519	6
14.75	114	212	2	32	185	334	4	82	265	519	6
15	114	212	2	32.5	185	334	4	83	265	519	6
15.25	120	218	2	33	185	334	4	84	265	519	6
15.5	120	218	2	33.5	185	334	4	85	265	519	6
15.75	120	218	2	34	190	339	4	86	270	524	6
16	120	218	2	34.5	190	339	4	87	270	524	6
16.25	125	223	2	35	190	339	4	88	270	524	6
16.5	125	223	2	35.5	190	339	4	89	270	524	6
16.75	125	223	2	36	195	344	4	90	270	524	6
17,223	125	223	2	36.5	195	344	4	91	275	529	6
17.25	130	228	2	37	195	344	4	92	275	529	6
17.5	130	228	2	37.5	195	344	4	93	275	529	6
17.75	130	228	2	38	200	349	4	94	275	529	6
18	130	228	2	38.5	200	349	4	95	275	529	6
18.25	135	233	2	39	200	349	4	96	280	534	6
18.5	135	233	2	39.5	200	349	4	97	280	534	6
18.75	135	233	2	40	200	349	4	98	280	534	6
19	135	238	2	40.5	205	354	4	99	280	534	6
19.25	140	238	2	41	205	354	4	100	280	534	6
19.5	140	238	2	41.5	205	354	4
19.75	140	238	2	42	205	354	4
20	140	238	2	42.5	205	354	4

DIN345 HSS TAPER SHANK TWIST DRILLS
