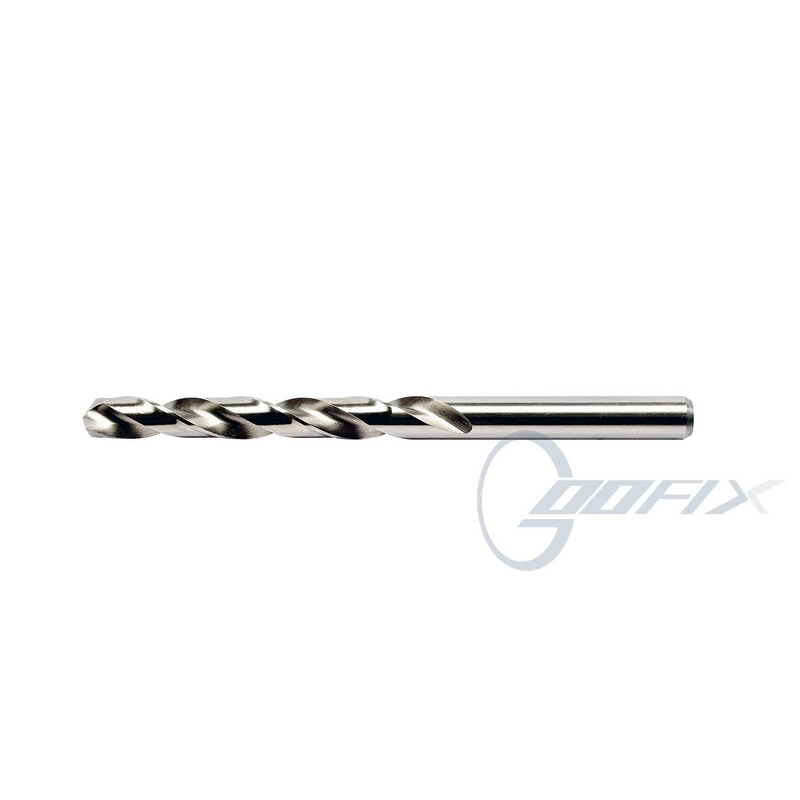

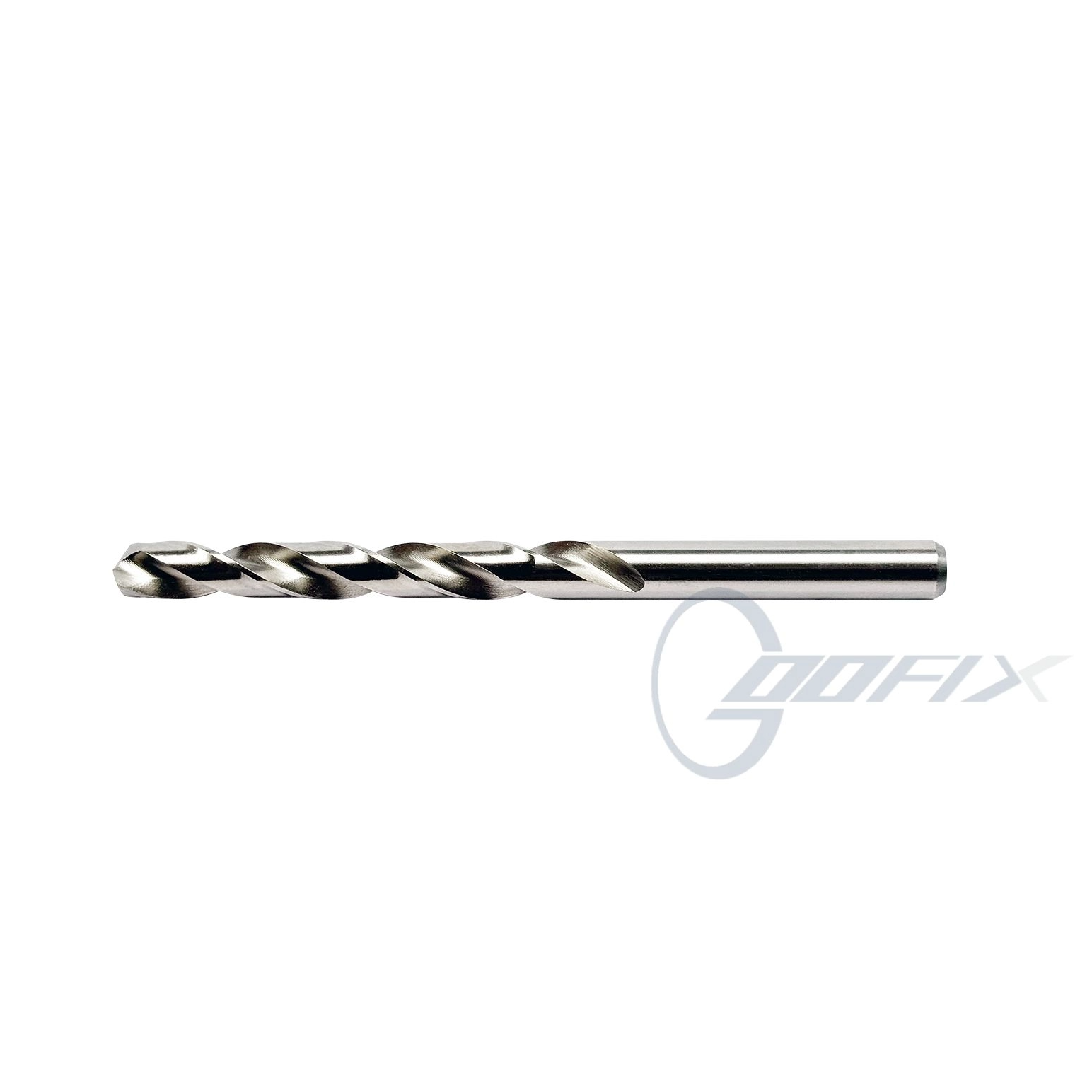

ASME B94.11M HSS SCREW MARCHINE LENGTH STUBBY DRILL | |||||||||||||
Diameter d | Overall Length L | Slot Length L₁ | Diameter d | Overall Length L | Slot Length L₁ | Diameter d | Overall Length L | Slot Length L₁ | |||||
1/16 | 1.588 | 41 | 16 | L | 7.366 | 70 | 40 | 35 | 2.794 | 48 | 22 | ||
5/64 | 1.984 | 43 | 17 | M | 7.493 | 70 | 40 | 34 | 2.819 | 48 | 22 | ||
3/32 | 2.381 | 44 | 19 | N | 7.671 | 71 | 41 | 33 | 2.87 | 48 | 22 | ||
7/64 | 2.778 | 48 | 21 | O | 8.026 | 75 | 43 | 32 | 2.946 | 48 | 22 | ||
1/8 | 3.175 | 48 | 22 | P | 8.204 | 75 | 43 | 31 | 3.048 | 48 | 22 | ||
9/64 | 3.572 | 49 | 24 | Q | 8.433 | 76 | 43 | 30 | 3.264 | 49 | 24 | ||
5/32 | 3.969 | 52 | 25 | R | 8.611 | 76 | 43 | 29 | 3.454 | 49 | 24 | ||
11/64 | 4.366 | 54 | 27 | S | 8.839 | 78 | 44 | 28 | 3.569 | 49 | 24 | ||
3/16 | 4.763 | 56 | 29 | T | 9.093 | 78 | 44 | 27 | 3.658 | 52 | 25 | ||
13/64 | 5.159 | 57 | 30 | U | 9.347 | 79 | 46 | 26 | 3.734 | 52 | 25 | ||
7/32 | 5.556 | 60 | 32 | V | 9.576 | 83 | 48 | 25 | 3.797 | 52 | 25 | ||
15/64 | 5.953 | 62 | 33 | W | 9.804 | 83 | 48 | 24 | 3.861 | 52 | 25 | ||
1/4 | 6.35 | 64 | 35 | X | 10.084 | 84 | 49 | 23 | 3.912 | 52 | 25 | ||
17/64 | 6.747 | 67 | 37 | Y | 10.262 | 84 | 49 | 22 | 3.988 | 54 | 27 | ||
9/32 | 7.144 | 68 | 38 | Z | 10.49 | 86 | 51 | 21 | 4.039 | 54 | 27 | ||
19/64 | 7.541 | 70 | 40 | 60 | 1.016 | 35 | 13 | 20 | 4.089 | 54 | 27 | ||
5/16 | 7.938 | 71 | 41 | 59 | 1.041 | 35 | 13 | 19 | 4.216 | 54 | 27 | ||
21/64 | 8.334 | 75 | 43 | 58 | 1.067 | 35 | 13 | 18 | 4.305 | 54 | 27 | ||
11/32 | 8.731 | 76 | 43 | 57 | 1.092 | 35 | 13 | 17 | 4.394 | 56 | 29 | ||
23/64 | 9.128 | 78 | 44 | 56 | 1.181 | 35 | 13 | 16 | 4.496 | 56 | 29 | ||
3/8 | 9.525 | 79 | 46 | 55 | 1.321 | 41 | 16 | 15 | 4.572 | 56 | 29 | ||
25/64 | 9.922 | 83 | 48 | 54 | 1.397 | 41 | 16 | 14 | 4.623 | 56 | 29 | ||
13/32 | 10.319 | 84 | 49 | 53 | 1.511 | 41 | 16 | 13 | 4.7 | 56 | 29 | ||
27/64 | 10.716 | 86 | 51 | 52 | 1.613 | 43 | 17 | 12 | 4.8 | 57 | 30 | ||
7/16 | 11.113 | 87 | 52 | 51 | 1.702 | 43 | 17 | 11 | 4.851 | 57 | 30 | ||
29/64 | 11.509 | 90 | 54 | 50 | 1.778 | 43 | 17 | 10 | 4.915 | 57 | 30 | ||
15/32 | 11.906 | 92 | 54 | 49 | 1.854 | 43 | 17 | 9 | 4.978 | 57 | 30 | ||
31/64 | 12.303 | 94 | 56 | 48 | 1.93 | 43 | 17 | 8 | 5.055 | 57 | 30 | ||
1/2 | 12.7 | 95 | 57 | 47 | 1.994 | 43 | 17 | 7 | 5.105 | 57 | 30 | ||
A | 5.944 | 62 | 33 | 46 | 2.057 | 44 | 19 | 6 | 5.182 | 60 | 32 | ||
B | 6.045 | 64 | 35 | 45 | 2.083 | 44 | 19 | 5 | 5.22 | 60 | 32 | ||
C | 6.147 | 64 | 35 | 44 | 2.184 | 44 | 19 | 4 | 5.309 | 60 | 32 | ||
D | 6.248 | 64 | 35 | 43 | 2.261 | 44 | 19 | 3 | 5.41 | 60 | 32 | ||
E | 6.35 | 64 | 35 | 42 | 2.375 | 44 | 19 | 2 | 5.613 | 62 | 33 | ||
F | 6.528 | 67 | 37 | 41 | 2.438 | 46 | 21 | 1 | 5.791 | 62 | 33 | ||
G | 6.629 | 67 | 37 | 40 | 2.489 | 46 | 21 | ||||||
H | 6.756 | 68 | 38 | 39 | 2.527 | 46 | 21 | ||||||
I | 6.909 | 68 | 38 | 38 | 2.578 | 46 | 21 | ||||||
J | 7.036 | 68 | 38 | 37 | 2.642 | 46 | 21 | ||||||
K | 7.137 | 68 | 38 | 36 | 2.705 | 46 | 21 | ||||||
